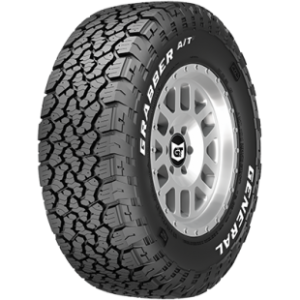

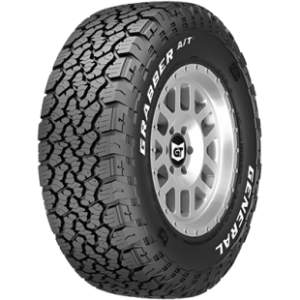

General Tire Grabber A/T
LT235/80R17 120R BSW
- All Season Light Truck/SUV
- Section Width : 9.30000000
- Overall Diameter : 807.80
- Sidewall : BSW
- Measuring Rim Width : 6.5
General Tire Grabber A/T
LT235/80R17 120R BSW
| Category | All Season Light Truck/SUV |
|---|---|
| Product Code | 4508510000 |
| Size | LT235/80R17 |
| Rim Diameter (inch) | 17 |
| Measuring Rim Width | 6.5 |
| Approved Rim Width | 6.0 - 7.5 |
| Sidewall | BSW |
| Service Desc | 120R |
| Speed Rating | R |
| Load Index | 120 |
| Maximum Load (Single) (LBS) | 3086 |
| Maximum Load (Dual) (LBS) | 2833 |
| Maximum Inflation (PSI) | 80 |
| Overall Diameter | 807.80 |
| Section Width | 9.30000000 |
| Tread Depth (32nds) | 16 |
| Revolutions/Mile | 653 |
| UTQG | none |
| Load Range | E |
